VXT Canvas

Creating a Menu Board Using a Template

  1. Click the Templates menu, and enter “menu” in the search box above the category list. Available menu-board templates appear.

  2. Click and load the desired menu-board template to Canvas.

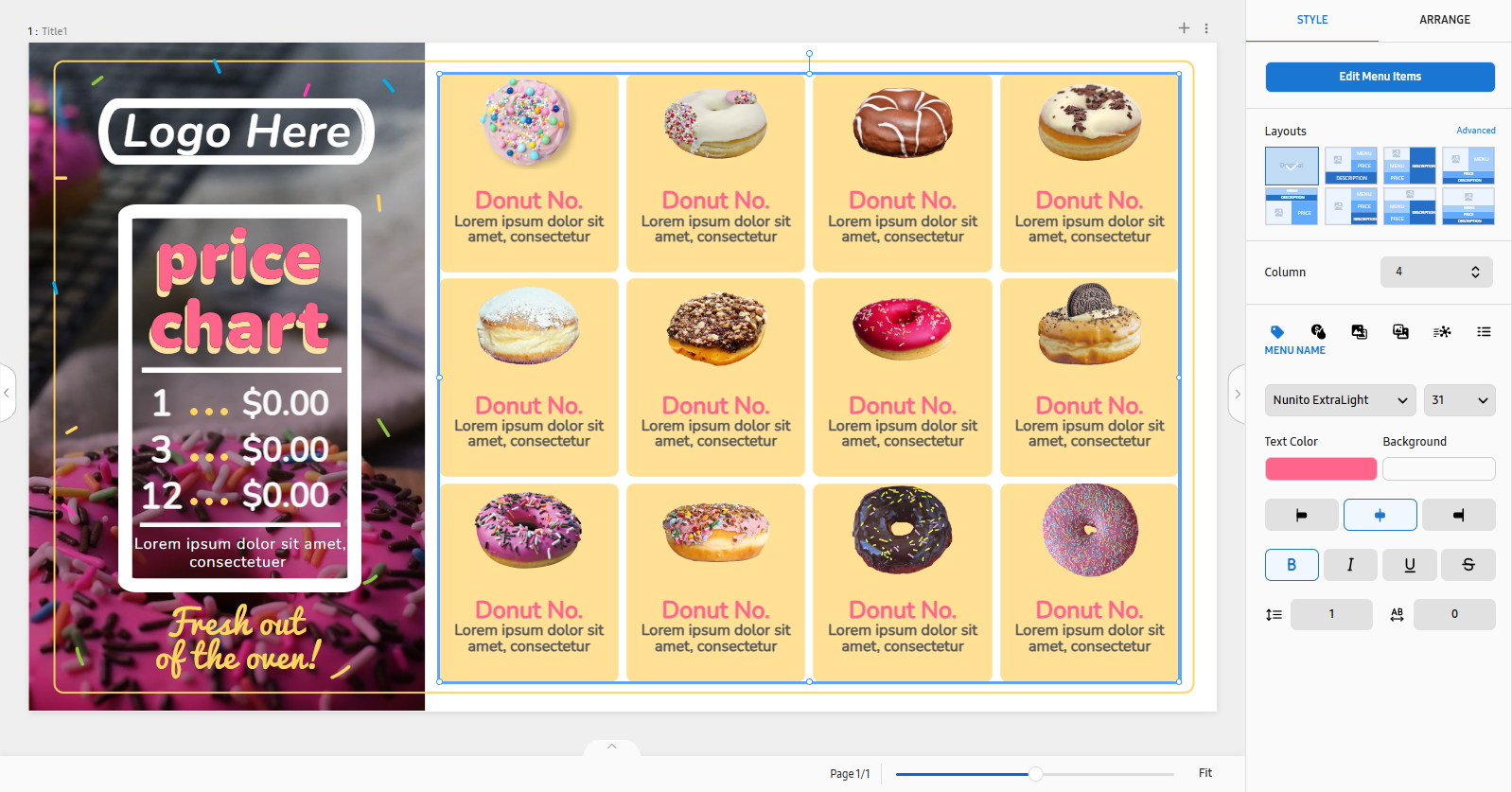

  3. Click the menu widget. The Style menu appears on the right.

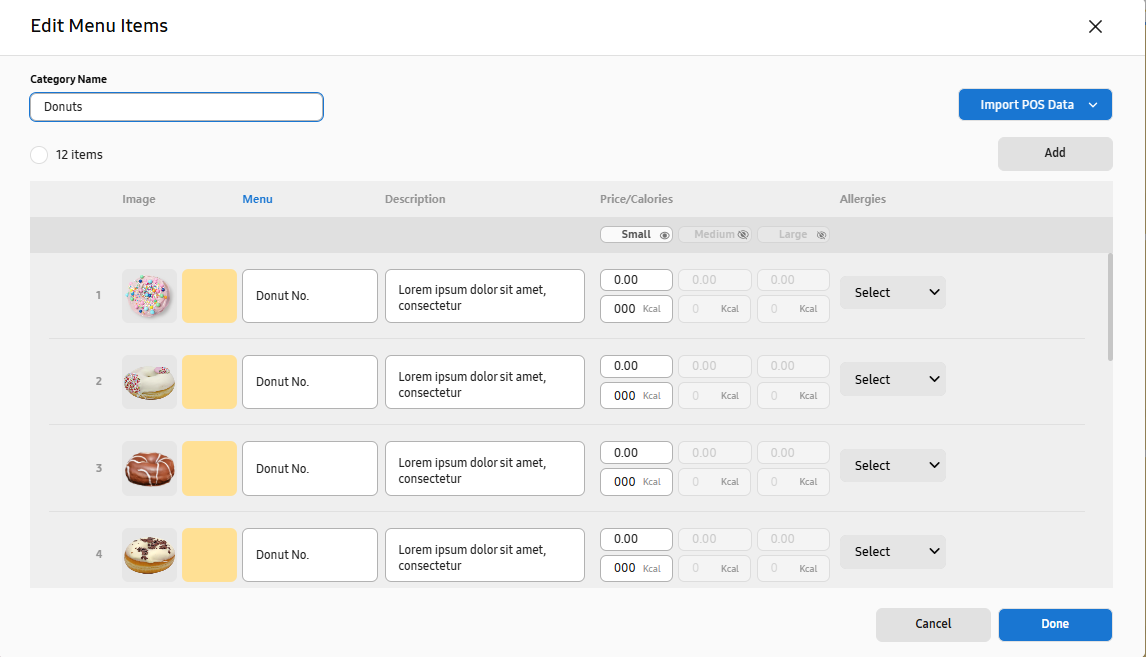

  4. Click Edit Menu Items. A pop-up window appears.

    You can view a list of menu items making up the menu widget, and edit menu items as required. For details on the menu items, refer to the following:

  5. After editing the menu items as required, click Done to close the Edit Menu Items window. The edited menu appears on the Canvas screen.

  6. You might need to change the layout according to changes in the menu.

    • Under Layout, click the desired layout.

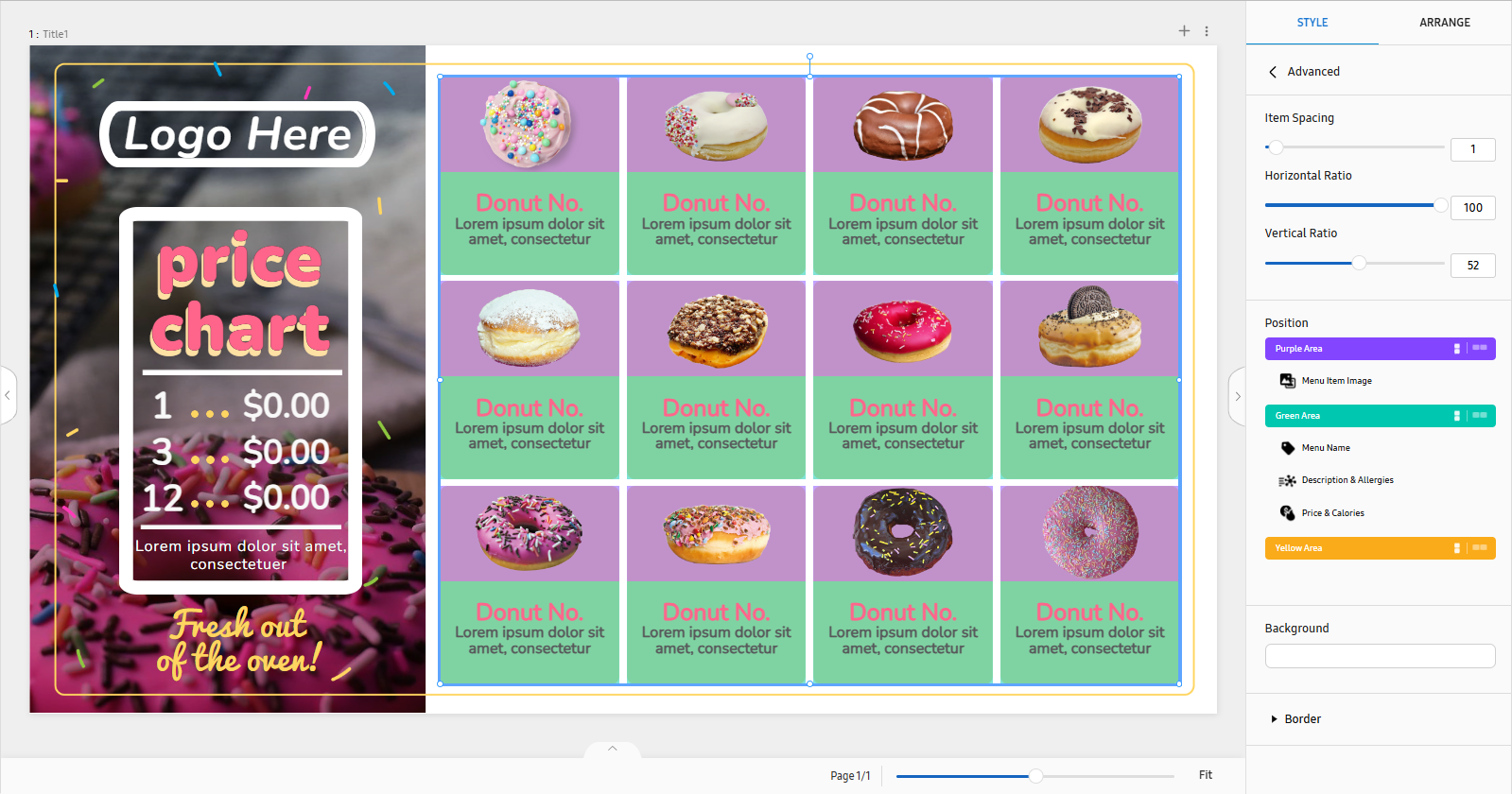

    • If you click Advanced, you can more finely edit the layout (Item Spacing , Horizontal Ratio, Vertical Ratio, Location, Background, Border, etc)

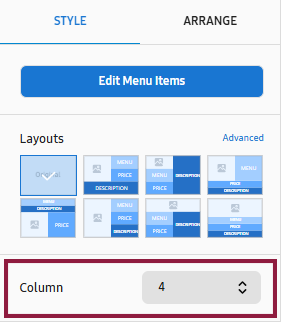

    • If you need to adjust the number of menu items to arrange in one row, use the Column option to adjust the number of menu items displayed per row.

  7. To preview the edited menu that will be displayed on the actual screen, click Preview.

    Click Save. Saving the menu board is complete. If content has already been published, changes are immediately applied to the screen.

Editing Menu Items

  • In the field at the top, enter a name to set the widget name.

  • Click a menu image to change the menu image and background image. When you place the mouse cursor on a menu image, a trash can icon appears. The menu image and background image can be deleted by clicking this icon.

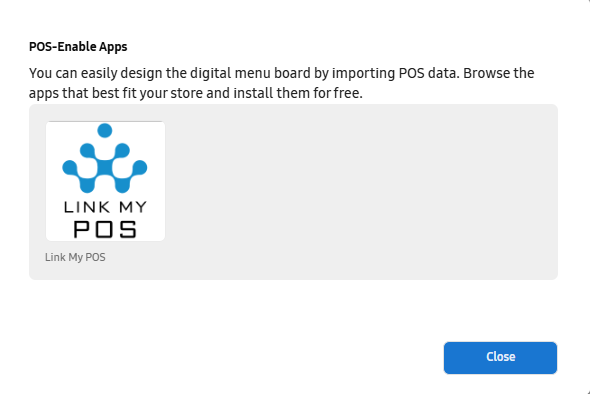

  • Easily design digital menu boards by importing POS data. Click Import POS data, and choose and install the POS app you want.

  • To add menu items, click Add.

  • When you hover your mouse over each item, the (Sold out: On), (Hide), (Move) and (Delete) icons appear.To change the menu to the sold-out state, click (Sold out: On). To hide the menu, click (Hide). To rearrange menus, drag and drop (Move). To delete the menu item, click (Delete).

Item

Description


Shows the menu item image. By clicking this image, you can load the corresponding image content.

MENU

Enter a menu name in this field. The menu name field cannot be left blank.

  • If the menu name field is blank, menu editing cannot be completed.

Description

Enter a description of the menu.

Price / Calories

Enter the price and calories of the menu.

Allergies

Displays ingredients that may cause allergies.
