Edit preset information, using one of the following options.

  • Option 1: Select a preset from the preset list and click Edit.
  • Option 2: Click a preset name from the preset list and edit in the preset editor window.

Editing preset time

  1. Select the Time tab from the preset editor window.
  2. Set the timer to automatically turn the device on or off.
  3. Click a Timer from the on/off timer list.
  4. Configure timer details.

  5. Configure the time and click Save. Click Register & Publish to immediately apply the set value to a group.

On Timer

Set the time to turn on the device. To use the timer, select Use.

  • Day: Select day(s) of the week to repeat the timer.
  • On Time: Set the time to turn on the device.
  • Volume: Set the device volume to apply when it turns on.
  • Source: Select an input source to apply when the device turns on.
  • Holiday: Specify whether to use holidays.
Off Timer

Set the time to automatically turn off the device. To use the timer, select Use.

  • Day: Select day(s) of the week to repeat the timer.
  • Off Time: Set the time to turn off the device.
  • Holiday: Specify whether to use holidays.
Holiday managementHoliday: Set holidays to prevent the device from operating on specified days.

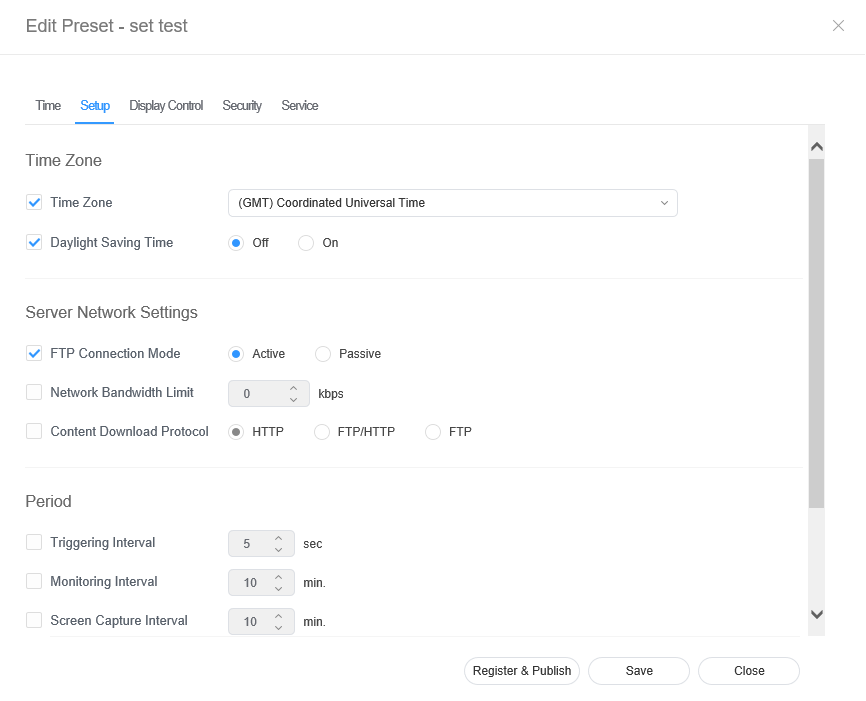

Editing preset settings

  1. Select the Setup tab from the preset editor window.

  2. Edit information and click Save. Click Register & Publish to immediately apply the set value to a group.

Time Zone
  • Time Zone: Select a time zone for each city.

  • Daylight Saving Time: Turn daylight savings time mode on or off. To use daylight savings time mode, configure start and end settings.

    Note

    Daylight Saving Time, also known as Summer Time, is a system that advances clocks one hour forward in summer.

Server Network Settings
  • FTP Connection Mode: Configure the FTP connection mode.
  • Network Bandwidth Limit: Limit the bandwidth for the server network to connect.
  • Download protocol: Configure the download mode.
Period
  • Triggering Interval: Specify the triggering cycle.
  • Monitoring Interval: Specify the monitoring cycle.
  • Screen Capture Interval: Specify the screen capture cycle.
  • System Restart Interval: Specify the system restart interval..

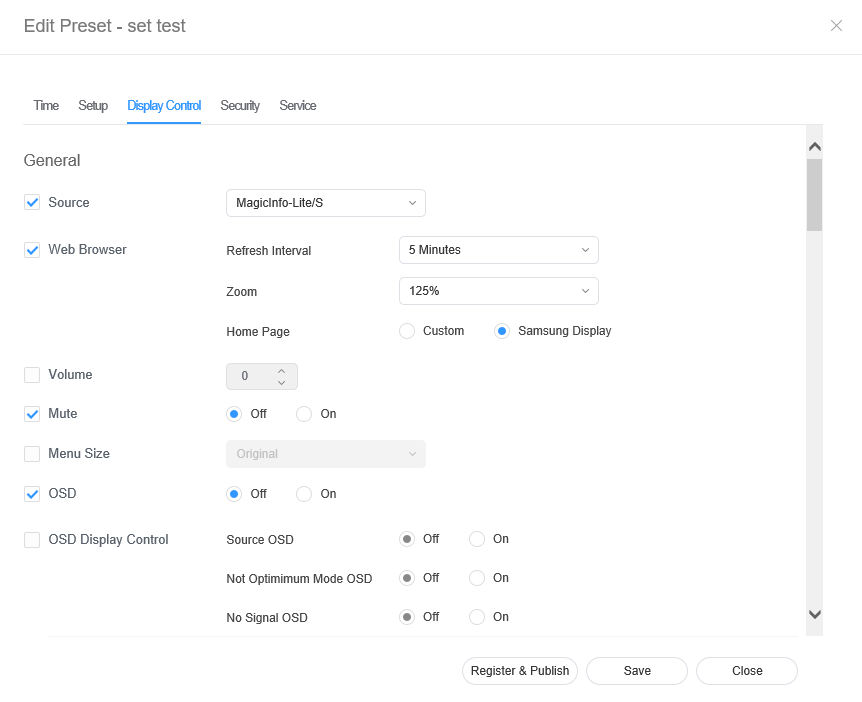

Editing preset display control

  1. Select the Display Control tab from the preset editor window.

  2. Edit information and click Save. Click Register & Publish to immediately apply the set value to a group.

Editing preset security

  1. Select the Security tab from the edit preset window.

  2. Edit information and click Save. Click Register & Publish to immediately apply the set value to a group.
