Using the OneDrive App

VXT Canvas supports the Microsoft OneDrive app for business. Link your VXT screen to OneDrive and display images and videos from your OneDrive as a slideshow on the screen.
Follow the steps below to use the Microsoft OneDrive app.

• Samsung VXT CMS only provides pairing with the user's Microsoft account for displaying content on a Signage device, and is not involved in actual data processing.

• All data is processed according to the terms of use and privacy policy of Microsoft.

  https://www.microsoft.com/en-us/legal/terms-of-use

• Samsung is not involved in any OneDrive content and assumes no responsibility for OneDrive content unrelated to Samsung.

Presets (Account Preparation)

To use the Microsoft OneDrive app, first, you need to create a Microsoft personal or work/school account that can be used as a OneDrive account. To create a personal Microsoft account, follow the procedure as follows:

1. Go to https://account.microsoft.com/account and click Create an account.

2. On sign in page, click Create an account and click Next.

3. Enter the code send to your email.

4. Enter your country/region and birthdate and click Next.

5. Enter your first name and last name, by click Next you agree to Microsoft Services Agreement and Privacy Statement.

6. After your account is successfully created, you can access Microsoft Excel by going to http://onedrive.live.com/.

7. You can change the sign in method on Security by add password or phone number.

• For more information on signing up for an account, refer to the following webpage:

  How to create a new Microsoft account - Microsoft Support

• And for more information regarding a Microsoft personal or work/school account, refer to the following webpage:

  Difference between a Microsoft account and a work or school account - Microsoft Support

Sign in to OneDrive (Using the App)

Sign in to your Microsoft personal or work/school account.
Make sure that you have your own Microsoft account.

Signing in to OneDrive

1. In VXT Canvas, click the Apps menu, then search for the Microsoft OneDrive App and click it.

2. On the app information, click the Install button.

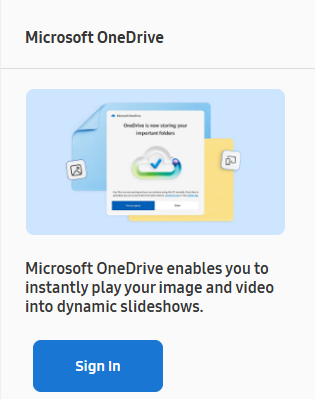

3. After the app is installed, click the Sign In button.

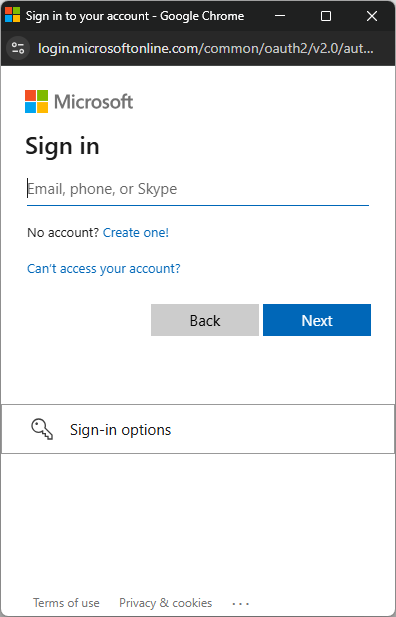

4. Please input the credentials of your Microsoft account.

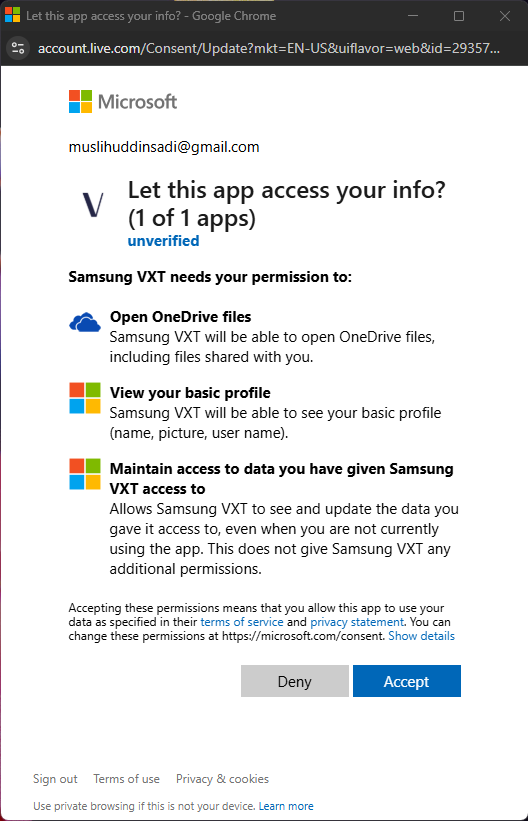

5. To accept all the access granted to the Samsung VXT Canvas App, click the Accept button.

   • You need to grant access for the Microsoft OneDrive App to be able to work properly.

6. The Samsung VXT Canvas app has been connected to your Microsoft account.

How to Use the Microsoft OneDrive App

Selecting a OneDrive Folder Containing Media Files

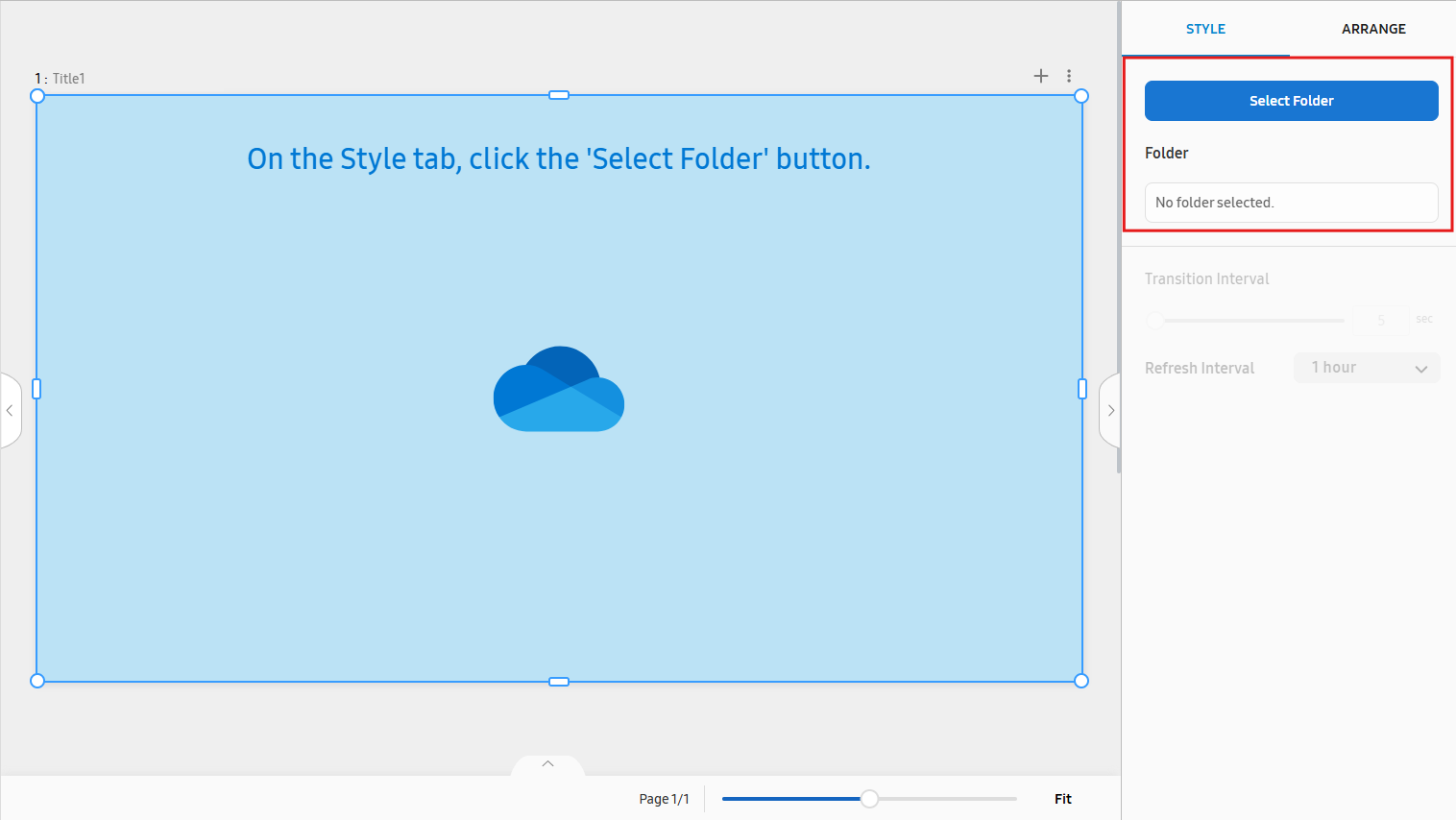

1. Open the OneDrive UI by clicking the Select Folder button.

   The OneDrive UI displays the content of the OneDrive associated with the account used for login.

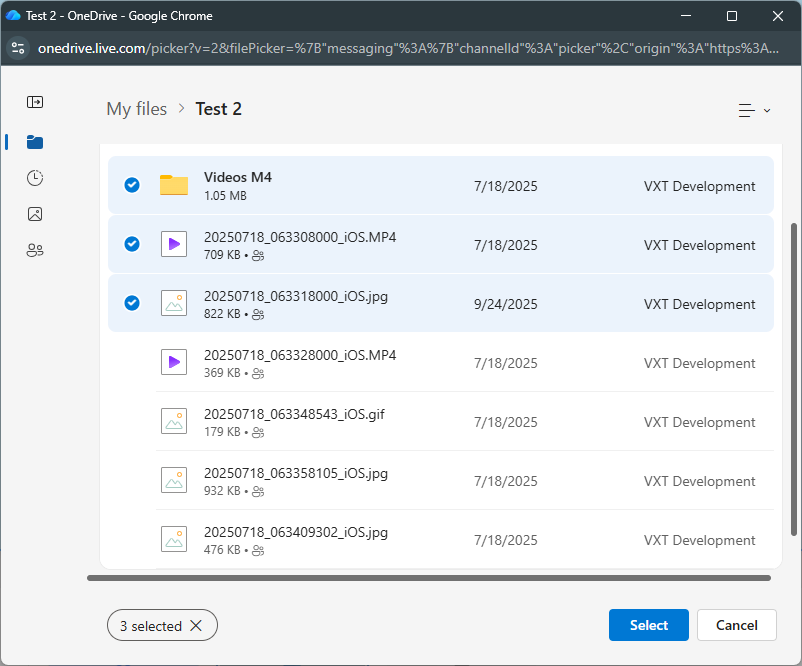

2. Select folders containing the image and video files to be displayed, or directly select the files, and click the Select button.

   • Currently, multiple folders alongside image and video files can be selected.

   • Images with HEIC extension (.HEIC/.HEIF) are not supported and won't be displayed in the content.

After folders or files are selected, all the images and videos inside the folders or selected directly will be displayed as a slideshow. If no valid image or video is selected, the content will not display anything.

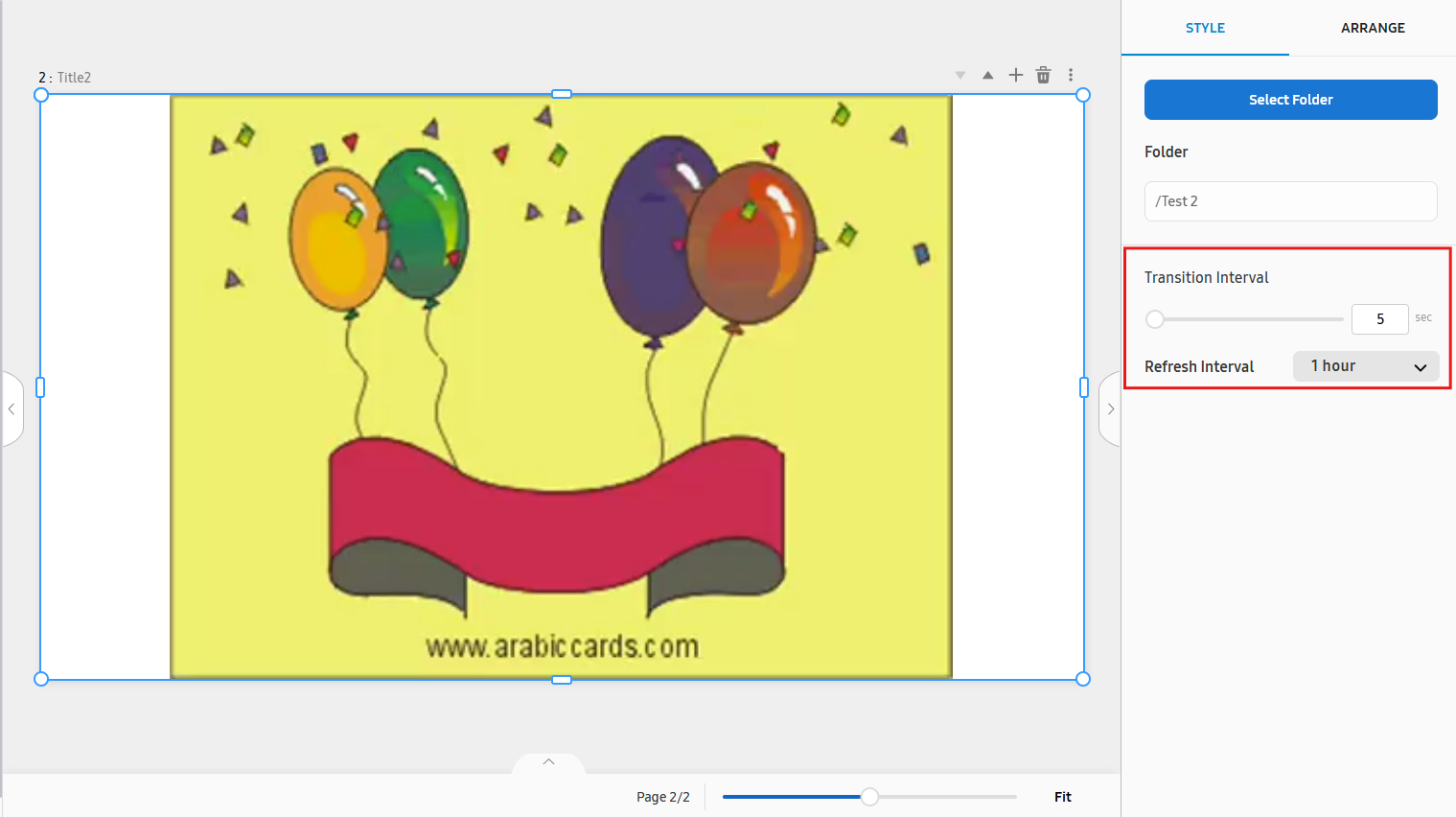

Specifying the Content Transition Interval and Refresh Interval

The Transition Interval or Refresh Interval can only be specified after the OneDrive content has been selected and the slideshow is displayed.

Transition Interval

Transition Interval is used to set the duration for which each image or video slide is displayed. (5~10 seconds)
For example, if you set the Transition Interval to 10, each slide is displayed for 10 seconds until it is changed to the next slide.

• If only one image or video is selected, the Transition Interval will not affect the slideshow since the slide displayed will not change.

• For the video slide, it will only be played for the duration of the Transition Interval and will be changed to the next slide regardless of the actual duration of the video.

• If the duration of the video is less than the Transition Interval, it will be looped until the slide is changed.

Refresh Interval

Refresh Interval is used to set the duration for the content inside the selected folder to be refreshed. (15 minutes~24 hours)
For example, if you set the Refresh Interval to 1 hour, the selected folders and files will be checked every hour, and if there are any changes, the slide content will be updated.

• If there are no changes to the content inside the selected folder, the slideshow will continue to be displayed as is.

• If images or videos are added to or removed from the selected folder, when the slideshow content is refreshed, the changes are applied.

• If directly selected images or videos are removed from the OneDrive, when the slideshow content is refreshed, they won't be displayed anymore.
