Remotely Controlling a Screen

Remotely control an added Samsung screen.

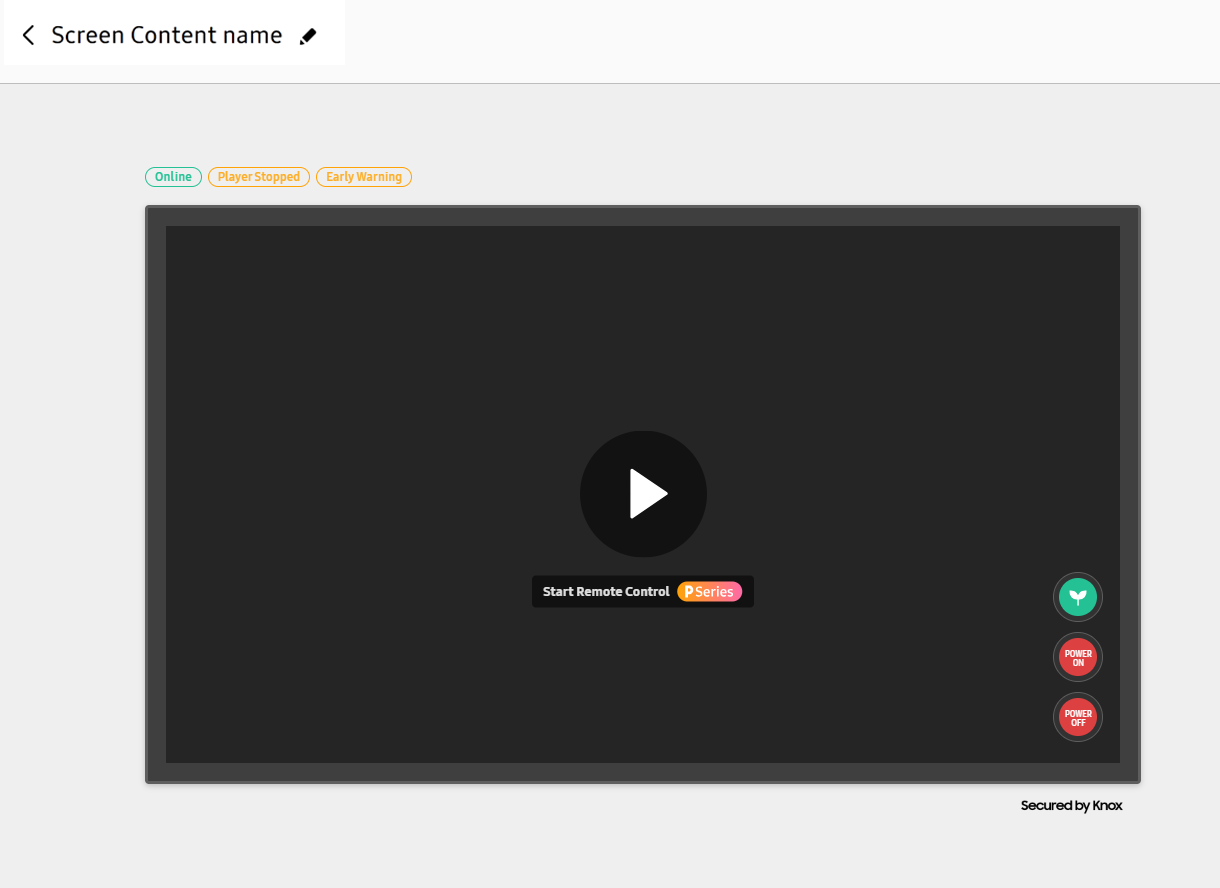

If you register a screen on the remote management server using the settings menu, the Start Remote Control button is enabled when you access the screen details page.

  • This feature is available only when the rate plan is P Series.

Press the button. When loading is complete, the screen connected for remote control appears.

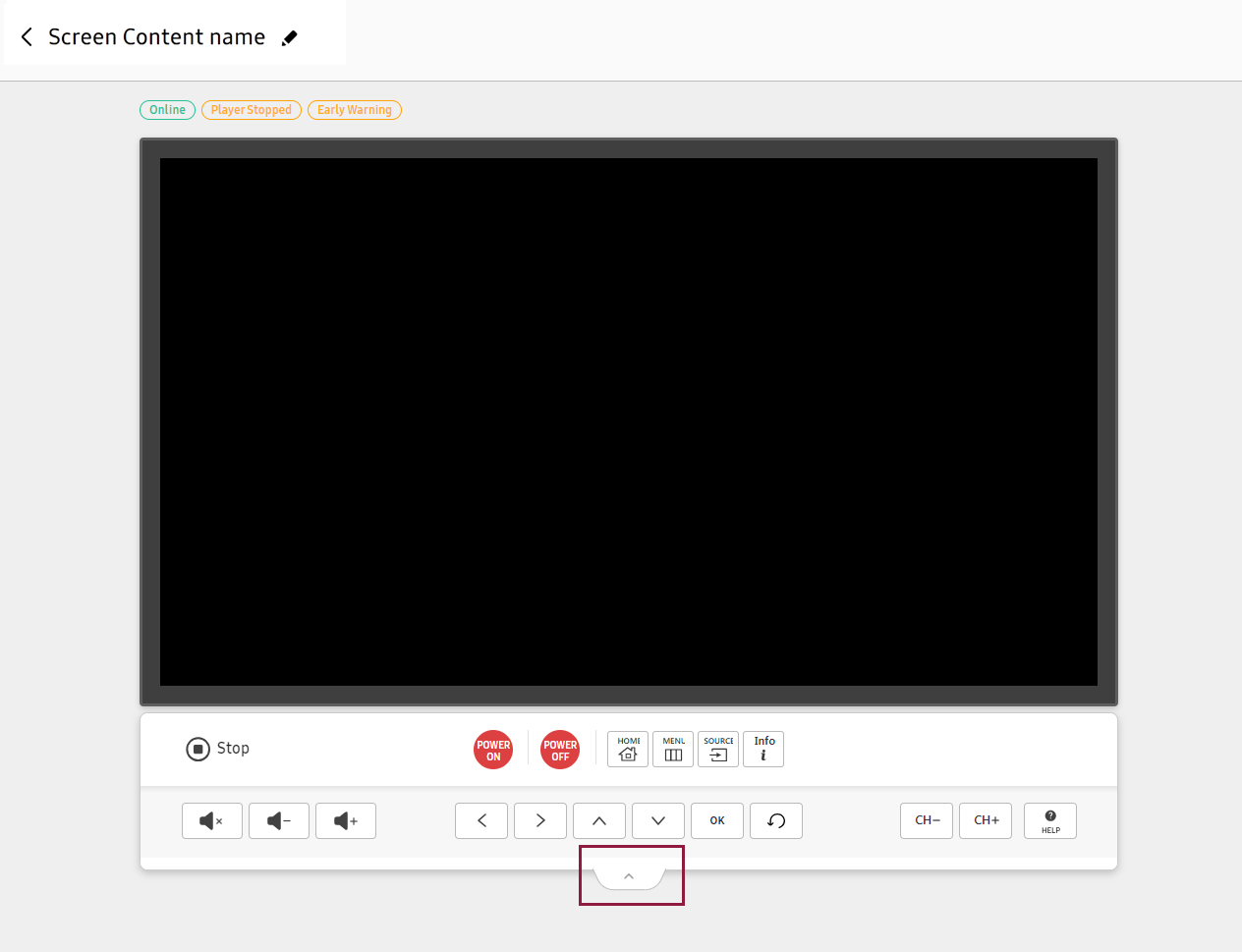

The menu button panel below the screen displays five buttons by default.
If you place the mouse cursor on the menu button panel, the icon appears. If you click the icon, the context menu buttons appear.

Buttons for remote control

Item

Description

(Stop)

Press before moving to another screen, to end remote control.

(Power On)

Press to turn on the screen. Press and hold to restart the screen.

  • If Remote Configuration is disabled for the screen, the screen cannot be remotely turned on.

(Power Off)

Press to turn off the screen. Press and hold to restart the screen.

(Home)

Displays the Home screen.

(MENU)

Configure various features for the screen.

(SOURCE)

Select a connected external device.

(Info)

View the screen information.

(MUTE)

(VOLUME DOWN)

(VOLUME UP)

Adjust the volume.

(LFET)

(RIGHT)

Move the focus.

(UP)

(DOWN)

Move the focus, or change channels.

(OK)

Select or run the item focused.

(RETURN)

Return to the previous menu.

(Help)

Displays details on how to remotely control a screen using the mouse and keyboard.

Displays or hides context menu buttons.

  • When context menu buttons are displayed for the first time, a button guide appears.
