This document covers how to configure MS-SQL for MagicINFO Server.

MS-SQL Configuration

Execute the SQL Server Configuration Manager to configure it as follows.

1. Execute SQL Server Configuration Manager

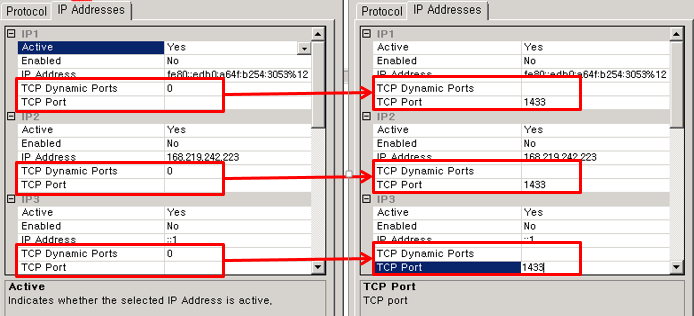

2. Network Configuration > TCP/IP Port configuration

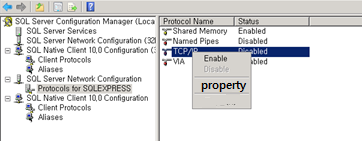

3. Set "Enabled" for Named Pipes

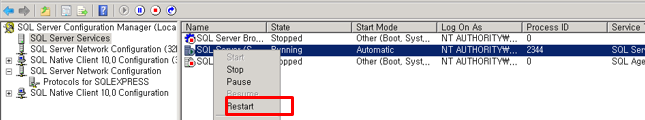

4. Restart Service


Set MS-SQL path in config.properties of MagicINFO Server

1. Set MS-SQL path (https://docs.microsoft.com/en-us/sql/connect/jdbc/building-the-connection-url?view=sql-server-ver15)
   Basic Format:  jdbc:sqlserver://[serverName[\instanceName][:portNumber]][;property=value[;property=value]]

2. Restart the MagicINFO Server service

Exception Handling

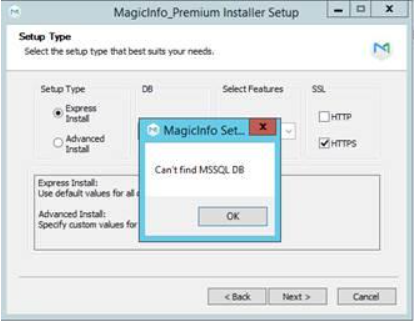

How to handle the error "Can't find MSSQL DB"

1. Check whether default name of MS-SQL initial installation is changed

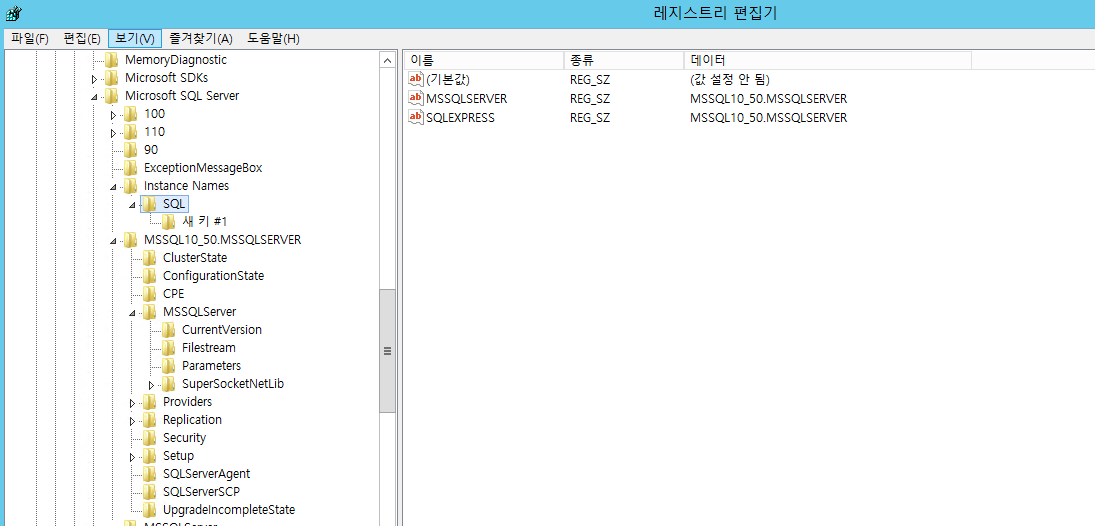

2. You can check default instance name in registry editor. Execute regedit, find   Microsoft SQL Server > Instance Names > SQL.
   Please check whether there is MSSQLSERVER or SQLEXPRESS key.

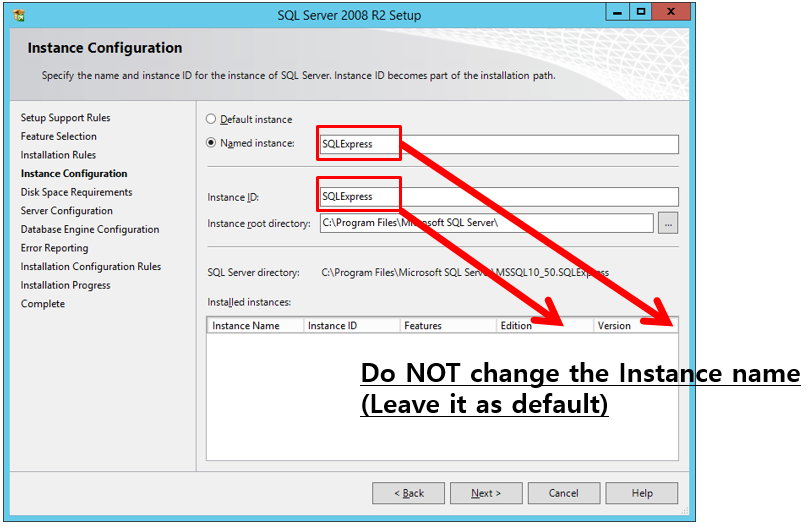

3. If you already installed using another name, please install again using default name or add registry key.
